LV180X300 Mini Lathe Varible Speed Readout Lathe Micro Lathe, Metalworking Machine
Picture showing
Notice : we have two color to choose (silver and blue ) ,
when you make the order ,please tell me which color do you want ,
if not ,we will send randomly ,thank you for your understand .
Accessories :(free gift )
11pcs cutters
Description:
Distance between centers: 300mm
Max workpiece Swing diameter: 180mm
Sindle taper: MT3
Speed change:stepless speed regulation
Sindle taper: MT3
Speed change:stepless speed regulation
Spindle hole diameter: 21mm
Tool slide stroke: 50mm
Taper of tailstock quill: MT2
Range of metric threads: 0.5-3mm
Range of inch threads: 10-44TPL
Stroke of cross side: 75mm
Spindle speed: 50-2500rpm
Voltage/Frequency: 230V/50Hz or 120V/60Hz
Motor: 600W
Tool slide stroke: 50mm
Taper of tailstock quill: MT2
Range of metric threads: 0.5-3mm
Range of inch threads: 10-44TPL
Stroke of cross side: 75mm
Stroke of tailstock sleeve:60mm
Spindle accuracy: 0.01mmSpindle speed: 50-2500rpm
Voltage/Frequency: 230V/50Hz or 120V/60Hz
Motor: 600W
Net Weight:60KG

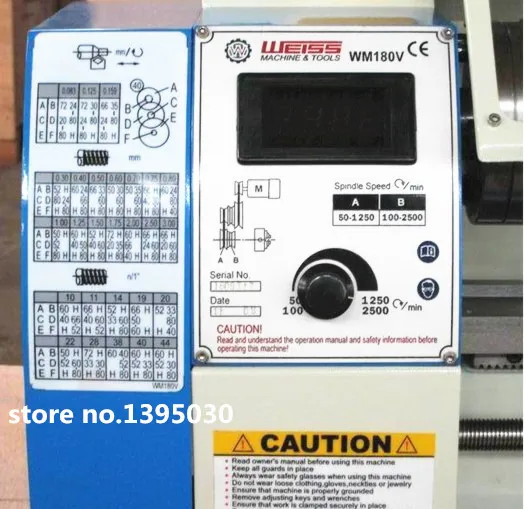

Digital spindle speed read out
Variable Speed
High-power motor
Quick lock tailstock
Overpower protection

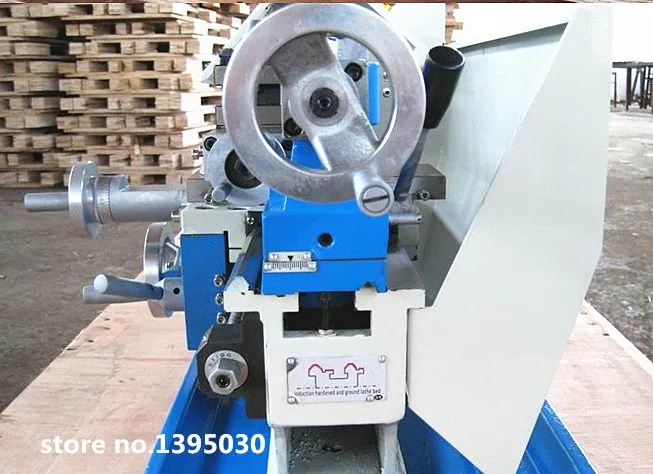

Induction harden bedway
Spindle speed redout
Variable speed
DC motor
This precision mini lathe is designed to perform various types of processing jods.
Counter turming,drilling.threading.and cutting jobs on materials made up of round
bar and materials can be performed with this machine can be usde in areas such as
mini precision parts processing,samples processing and modleling works.
This machine is digital-readout speed redout mini-lathe.
